Electric Ball Valves are used in applications where normal Solenoid Valves fail due to the type of medium(Liquid or Gas) that needs to be controlled. With Dirty water or liquids with big solid pieces the Basic Diaphragm Solenoid Valve pilot holes can block.

With an Electric Motor Driven Ball Valve this will not happen,because the drive mechanism is situated outside the valve and does not make contact with the medium.

Other applications could be for diverting Flow with a 3 Way Electric Ball Valve in a Solar Heating System or Water Storage Tank.The Ball Valve can be ordered in 12V, 24V or 220V(110-220VAC).

We import Stainless Steel ball valves, because then customers can use it with aggressive media also, without corrosion. The Ball seals are PTFE(teflon) and can also handle just about any medium.

For high volume and low cost applications we also import the Brass type on request.

The Ball valve is also suitable for vacuum application, similar to a hand ball valve. The only difference is that this valve is driven by a small geared motor to open and close.

The 2 port valves are available in sizes up to 2" and the 3 port up to 1" size. The 3 port type can work as N/Open, N/closed or Diverter Flow type.

The new design type 2 or 3 way has a Fail Safe to OPEN or Fail safe to CLOSE option(Even Without any Power(Through Stored capacitor energy). See the 3 basic Wiring daigram on the Datasheet next to picture  for wiring options.

PVX2XX Series Electric Ball Valves(N/Closed or N/Open)

PVX2XX Series ,2/2 Way Stainless Steel FULL BORE Electric Ball Valves. (PVC-N/Closed)(PVO-N/Open) These Valves have switches that switch them off when they reach end of rotation. The Dc Type uses only mili-amps, during movement time to open and close and can thus be used for months or years on small batteries.(Ideal for remote control) Features: Motor Enclosure:IP65 Body Material Stainless Steel 304 Media Pressure: 0-10 Bar Medium temperature: Minus 2 to 95 Degrees C. Voltages: 3,5,9,12,15,24VDC and 220VAC(See Specific Stock Item) Applications: It is used for Industrial Line Shutoff,home water, Solar water heaters and small automatic control equipment.


View PDF data sheet for specific information.
PVX2XX Series Electric Ball Valves(N/Closed or N/Open)

PVX2XX Series ,2/2 Way Stainless Steel FULL BORE Electric Ball Valves. (PVC-N/Closed)(PVO-N/Open) These Valves have switches that switch them off when they reach end of rotation. The Dc Type uses only mili-amps, during movement time to open and close and can thus be used for months or years on small batteries.(Ideal for remote control) Features: Motor Enclosure:IP65 Body Material Stainless Steel 304 Media Pressure: 0-10 Bar Medium temperature: Minus 2 to 95 Degrees C. Voltages: 3,5,9,12,15,24VDC and 220VAC(See Specific Stock Item) Applications: It is used for Industrial Line Shutoff,home water, Solar water heaters and small automatic control equipment.


View PDF data sheet for specific information.

3/4" FULL BORE BSP. 2/2 Motorised Stainless Steel Ball Valve-XXX-VAC/DC. IP65, Position Indicator
PART NO : PVX220WXXDX
SIZE/DESCRIPTION:
3/4" FULL BORE BSP. 2/2 Motorised Stainless Steel Ball Valve-XXX-VAC/DC. IP65, Position Indicator

PRICE FROM: R 2850.00 to 3350.00 (Min 2 Items Ordered)
QUANTITY:


QUANTITY:
PART NO : PVX225WXXDX
SIZE/DESCRIPTION:
1" FULL BORE BSP. 2/2 Motorised Stainless Steel Ball Valve-XXX-VAC/DC. IP65, Position Indicator

PRICE FROM: R 2950.00 to 3600.00 (Min 2 Items Ordered)
QUANTITY:


QUANTITY:
PART NO : PVX240WXXDX
SIZE/DESCRIPTION:
11/2"(40mm) FULL BORE BSP. 2/2 Motorised Stainless Steel Ball Valve-XXX-VAC/DC. IP65, Position Indicator

PRICE FROM: R 4669.00 to 5294.00(Min 2 Items Ordered)
QUANTITY:


QUANTITY:
PART NO : PVX250WXXDX
SIZE/DESCRIPTION:
2" FULL BORE BSP. 2/2 Motorised Stainless Steel Ball Valve-XXX-VAC/DC. IP65, Position Indicator

PRICE FROM: R 5813.00 to 6790.00 (Min 2 Items Ordered)
QUANTITY:


QUANTITY:

PVX3XX Series Electric Ball Valves

PVX3XX Series ,3/2 Way Stainless Steel Electric Ball Valves. These Valves have switches that switch them off when they reach end of rotation. Features: Motor Enclosure:IP65 Body Material Stainless Steel 304 Media Pressure: 0-10 Bar Medium temperature: Minus 2 to 95 Degrees C. Voltages: 3,5,9,12,15,24VDC and 220VAC(See Specific Stock Item) Applications: It is used for Industrial Line Shutoff,home water, Solar water heaters and small automatic control equipment.


View PDF data sheet for specific information.
PVX3XX Series Electric Ball Valves

PVX3XX Series ,3/2 Way Stainless Steel Electric Ball Valves. These Valves have switches that switch them off when they reach end of rotation. Features: Motor Enclosure:IP65 Body Material Stainless Steel 304 Media Pressure: 0-10 Bar Medium temperature: Minus 2 to 95 Degrees C. Voltages: 3,5,9,12,15,24VDC and 220VAC(See Specific Stock Item) Applications: It is used for Industrial Line Shutoff,home water, Solar water heaters and small automatic control equipment.


View PDF data sheet for specific information.

3/4" (15mm Orifice) BSP. 3/2 Motorised S/Steel Ball Valve-XXX-VAC/DC. L-type, IP65, Position Indicator
PART NO : PVX320WXXDX
SIZE/DESCRIPTION:
3/4" (15mm Orifice) BSP. 3/2 Motorised S/Steel Ball Valve-XXX-VAC/DC. L-type, IP65, Position Indicator

PRICE FROM: R 3980.00 (Min 2 Items Ordered)
QUANTITY:


QUANTITY:
PART NO : PVX325WXXDX
SIZE/DESCRIPTION:
1" (18mm Orifice) BSP. 3/2 Motorised S/Steel Ball Valve-XXX-VAC/DC. L-type, IP65, Position Indicator

PRICE FROM: R 4885.00 (Min 2 Items Ordered)
QUANTITY:


QUANTITY:

PVTX2XX Stainless Steel Series Electric Timer Ball Valves

PVTX2XX Stainless Steel Series ,2/2 Way Stainless Steel FULL BORE Electric Timer Ball Valves. These Valves have switches that switch them off when they reach end of rotation. Stays open for selected time then closes for selected time. Features: Motor Enclosure:IP65 Body Material Stainless Steel Media Pressure: 0-10 Bar Medium temperature: Minus 2 to 90 Degrees C. Voltages: 3,5,9,12,15,24VDC and 110/220VAC(See Specific Stock Item) Applications: It is used for industrial line shutoff, home water, solar water heaters and small automatic control equipment.


View PDF data sheet for specific information.
PVTX2XX Stainless Steel Series Electric Timer Ball Valves

PVTX2XX Stainless Steel Series ,2/2 Way Stainless Steel FULL BORE Electric Timer Ball Valves. These Valves have switches that switch them off when they reach end of rotation. Stays open for selected time then closes for selected time. Features: Motor Enclosure:IP65 Body Material Stainless Steel Media Pressure: 0-10 Bar Medium temperature: Minus 2 to 90 Degrees C. Voltages: 3,5,9,12,15,24VDC and 110/220VAC(See Specific Stock Item) Applications: It is used for industrial line shutoff, home water, solar water heaters and small automatic control equipment.


View PDF data sheet for specific information.

1/2" FULL BORE BSP. 2/2 Motorised Stainless Steel Timer Ball Valve-XXX-VAC/DC. IP65, With Position Indicator.
PART NO : PVTX215W22DX
SIZE/DESCRIPTION:
1/2" FULL BORE BSP. 2/2 Motorised Stainless Steel Timer Ball Valve-XXX-VAC/DC. IP65, With Position Indicator.

PRICE FROM: R 2450.00
QUANTITY:


QUANTITY:

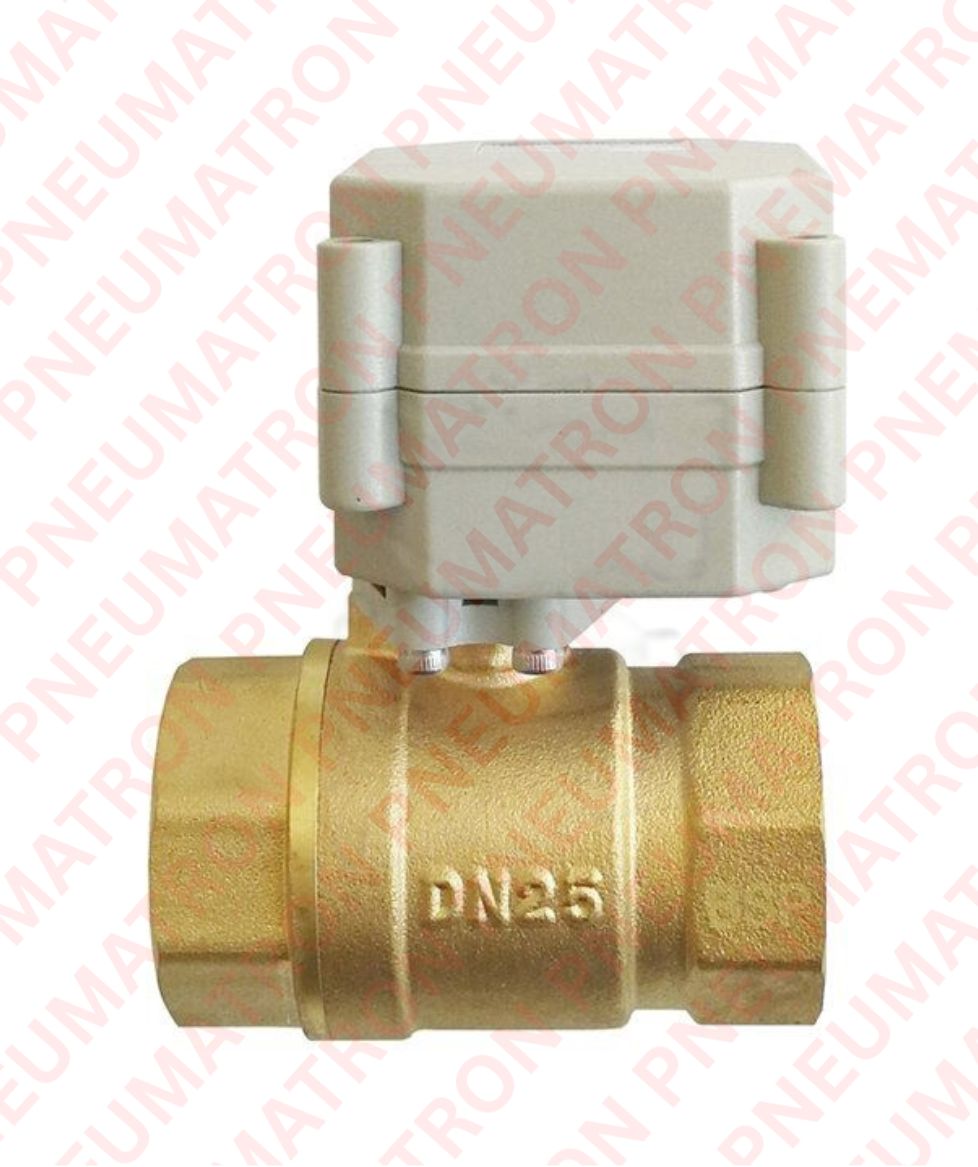

PBVD2XX Brass Detent Series Electric Ball Valves

PBVD2XX Brass Detent Series, 2/2 Way FULL BORE Brass Electric Ball Valves. (W33 - wiring). These Valves have switches that switch them off when they reach end of rotation. Features: Motor Enclosure:IP65 Body Material Brass Media Pressure: 0-10 Bar Medium temperature: Minus 2 to 95 Degrees C. Voltages: 3,5,9,12,15,24VDC/AC and 220VAC(See Specific Stock Item) Applications: It is used for Industrial Line Shutoff,home water, Solar water heaters and small automatic control equipment.


View PDF data sheet for specific information.
PBVD2XX Brass Detent Series Electric Ball Valves

PBVD2XX Brass Detent Series, 2/2 Way FULL BORE Brass Electric Ball Valves. (W33 - wiring). These Valves have switches that switch them off when they reach end of rotation. Features: Motor Enclosure:IP65 Body Material Brass Media Pressure: 0-10 Bar Medium temperature: Minus 2 to 95 Degrees C. Voltages: 3,5,9,12,15,24VDC/AC and 220VAC(See Specific Stock Item) Applications: It is used for Industrial Line Shutoff,home water, Solar water heaters and small automatic control equipment.


View PDF data sheet for specific information.

1/2" FULL BORE BSP. 2/2 Detent Motorised Brass Ball Valve-XXX-VAC/DC. IP65, With Position Indicator.
PART NO : PBVD215W33DX
SIZE/DESCRIPTION:
1/2" FULL BORE BSP. 2/2 Detent Motorised Brass Ball Valve-XXX-VAC/DC. IP65, With Position Indicator.

PRICE FROM: R 1995.00
QUANTITY:


QUANTITY:

PGBVC Brass Series Electric Ball Valves

PGBVC Brass Series ,3/2 Way Brass FULL BORE Electric Ball Valves. (CAN BE USED AS NORMAL OPEN, CLOSED OR AS A FLOW DIVERTER VALVE) These Valves have switches that switch them off when they reach end of rotation. Features: Motor Enclosure:IP65 Body Material Brass Media Pressure: 0-10 Bar Medium temperature: Minus 2 to 90 Degrees C. Voltages: 3,5,9,12,15,24VDC and 110/220VAC(See Specific Stock Item) Applications: It is used for Industrial Line Shutoff,home water, Solar water heaters and small automatic control equipment.


View PDF data sheet for specific information.
PGBVC Brass Series Electric Ball Valves

PGBVC Brass Series ,3/2 Way Brass FULL BORE Electric Ball Valves. (CAN BE USED AS NORMAL OPEN, CLOSED OR AS A FLOW DIVERTER VALVE) These Valves have switches that switch them off when they reach end of rotation. Features: Motor Enclosure:IP65 Body Material Brass Media Pressure: 0-10 Bar Medium temperature: Minus 2 to 90 Degrees C. Voltages: 3,5,9,12,15,24VDC and 110/220VAC(See Specific Stock Item) Applications: It is used for Industrial Line Shutoff,home water, Solar water heaters and small automatic control equipment.


View PDF data sheet for specific information.

3/4" REDUCED BORE BSP. 3/2 Motorised Brass Ball Valve-XXX-VAC/DC. IP65, With Position Indicator. (CAN BE USED AS NORMAL OPEN, CLOSED OR AS A FLOW DIVERTER VALVE).
PART NO : PGBVC320W52DX
SIZE/DESCRIPTION:
3/4" REDUCED BORE BSP. 3/2 Motorised Brass Ball Valve-XXX-VAC/DC. IP65, With Position Indicator. (CAN BE USED AS NORMAL OPEN, CLOSED OR AS A FLOW DIVERTER VALVE).

PRICE FROM: R 2550.00
QUANTITY:


QUANTITY:
